Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf

Dongguan Pengchen New Materials Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf

Brand Name : Toray

Model Number : ABS 100G20

Certification : MSDS

Place of Origin : Malaysia

MOQ : 25KG

Price : USD1.7-2.2KG

Payment Terms : T/T

Supply Ability : 500TONS

Delivery Time : 7-15

Packaging Details : Plastic bag/Paper bag

Process : Injection molding

Material Attribute : 20%Glass Fiber Reinforced

Tensile Strength 23℃ : 102MPa

Flexural Strength 23℃ : 155MPa

Flexural Modulus 23℃ : 6540MPa

Charpy Notch Impact 23℃ : 8kJ/m²

Contact Now

Products Description

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf

ABS Malaysia Toray 100G20 High R​igidity Glass Fiber Reinforced 20% High Flow Flame Retardant For Electronic Appliances Home Appliances Industrial Machinery Applications Automotive Applications

Toray TOYOLAC ABS 100G-20 is a glass fiber reinforced ABS resin with 20% glass fiber and simple beam impact strength of 8/kJ/m2. It is widely used in industrial and household products. This is because it has a good range of properties (strength, lightness and aesthetics) and excellent mechanical, chemical and electrical properties and excellent processability.

product feature

ABS
100G-20
Product information
Other Certificates MSDS
Part Marking Code >ABS-GF20<
Color Colors available
Material Shape Pellets
Process Injection molding
FR HB
Material Attribute 20%Glass Fiber Reinforced
specification ·UL·UL94
Application ·Automotive applications ·Automotive interior parts ·E&E Applications
·Bathroom accessories ·General purpose
UL File NO E41797
Certificate UL MSDS
Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf
Physical property Standard Value Unit
Density 23℃ ISO 1183 1.18 g/cm³
Shrinkage 23℃ 50RH INTERNAL METHOD 0.10~0.30 %
Melt Index 240℃10kg ISO 1133 17 g/10min
Hardness Standard Value Unit
Rockwell Hardness R(Scale)23℃ ISO 2039 120
Mechanical behavior Standard Value Unit
Tensile Strength 23℃ ISO 527 102 MPa
Elongation Break 23℃ ISO527 3.0 %
Flexural Strength 23℃ ISO 178 155 MPa
Flexural Modulus 23℃ ISO 178 6540 MPa
Charpy Notch Impact 23℃ ISO 179 8.0 kJ/m²
Thermal Standard Value Unit
HDT Unannealed 1.8MPa ISO 75 104
Vicat Softening Temperature INTERNAL METHOD 95
Flammability Standard Value Unit
Flame Rating All Color 1.5mm UL94 HB
Flame Rating All Color 3.0mm UL94 HB
Flame Rating All Color 6.0mm UL94 HB
UL Standard Value Unit
UL FlameRating ALL1.5mm UL94 HB
UL FlameRating ALL 3.0mm UL94 HB
UL FlameRating ALL 6.0mm UL94 HB
HWI ALL1.5mm UL 746A 4 PLC
HWI ALL 3.0mm UL 746A 2 PLC
HWI ALL 6.0mm UL 746A 2 PLC
HAI ALL1.5mm UL746A 0 PLC
HAI ALL3.0mm UL 746A 0 PLC
HAI ALL 6.0mm UL 746A 0 PLC
RTI Elec ALL 1.5mm UL 746B 60
RTI Elec ALL3.0mm UL746B 60
RTI Elec ALL 6.0mm UL746B 60
RTI Imp ALL 1.5mm UL746B 60
RTI Imp ALL 3.0mm UL746B 60
RTI Imp ALL 6.0mm UL746B 60
RTI Str ALL1.5mm UL 746B 60
RTI Str ALL 3.0mm UL746B 60
RTI Str ALL 6.0mm UL746B 60
Comparative Tracking Index IEC 60112 0 PLC

Application

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 GfElectronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 GfMechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

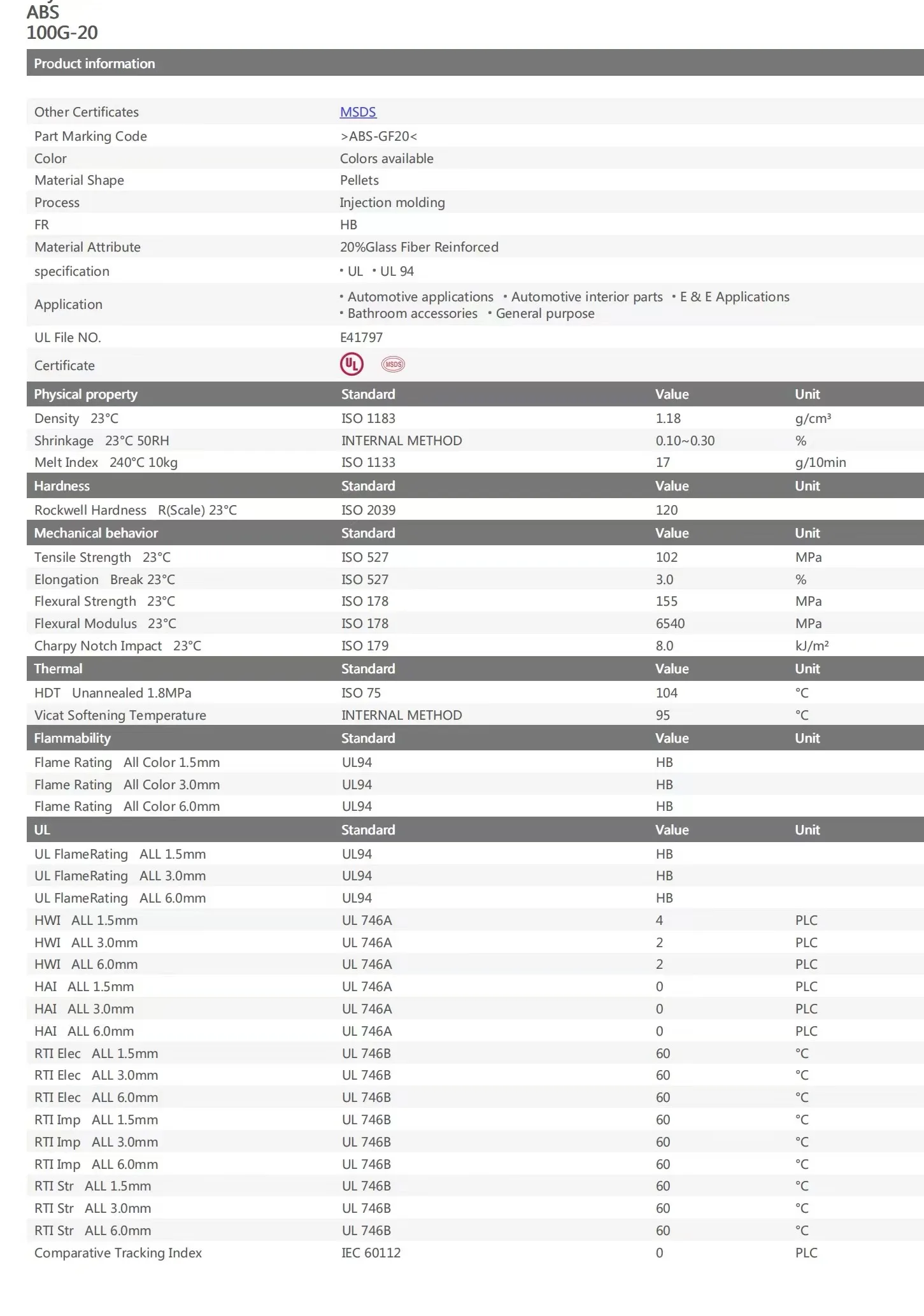

Physical Property Parameter​

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf

Toray 100G20 Acrylonitrile Butadiene Styrene Material High Flow Abs 20 Gf
