Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate

Brand Name : Arkema

Model Number : PMMA DR101

Certification : MSDS

Place of Origin : France

MOQ : 25KG

Price : USD5-6KG

Payment Terms : T/T

Supply Ability : 500TONS

Delivery Time : 7-15days

Packaging Details : Plastic bag/Paper bag

Material : PMMA DR101

Shape : Pellets

Density : 1.16 g/cm³

Shrinkage Flow : 0.55%

Flexural Strength 23℃ : 65MPa

Flexural Modulus 23℃ : 1820MPa

HDT Annealed 1.8MPa : 87℃

Ingredient : 100% Virgin Material

DELIVERY TIME : 5-14 Days

Contact Now

Products Description

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate

PMMA France Arkema DR101 Impact Resistance UV Resistance Scratch Resistance High Light Transmittance Weather Resistance Excellent Mechanical Properties Suitable For Medical Field Lighting Fixtures
Due to its high rigidity and high impact resistance, the PMMA DR101 is suitable for a wide range of industrial and consumer products, especially in applications requiring transparency and mechanical strength.

product feature

PMMA
DR101

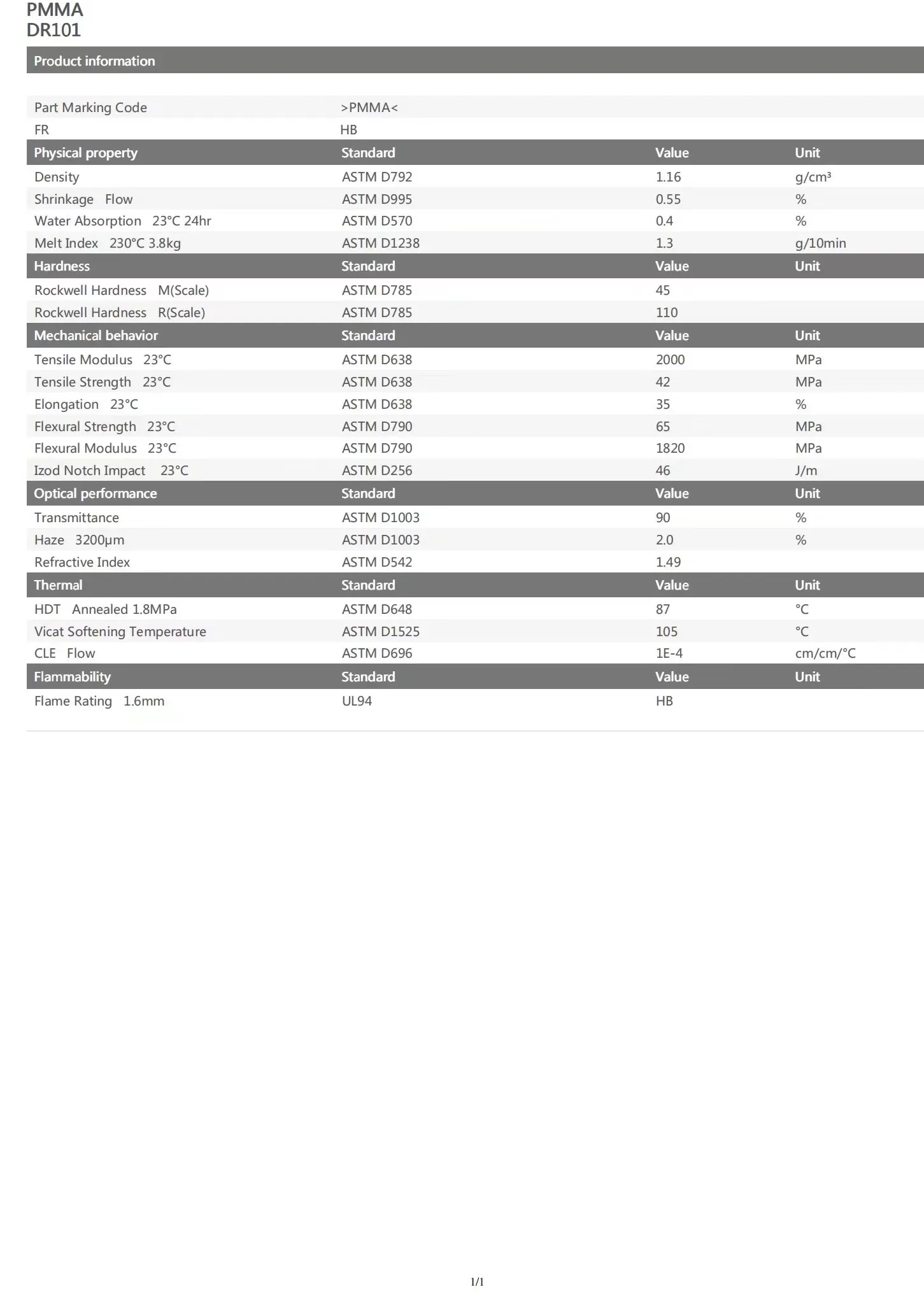

Product information
Part Marking Code >PMMA<
FR HB
Physical property Standard Value Unit
Density ASTM D792 1.16 g/cm³
Shrinkage Flow ASTM D995 0.55 %
Water Absorption 23℃24hr ASTM D570 0.4 %
Melt Index 230℃ 3.8kg ASTM D1238 1.3 g/10min
Hardness Standard Value Unit
Rockwell Hardness M(Scale) ASTM D785 45
Rockwell Hardness R(Scale) ASTM D785 110
Mechanical behavior Standard Value Unit
Tensile Modulus 23℃ ASTM D638 2000 MPa
Tensile Strength 23℃ ASTM D638 42 MPa
Elongation 23℃ ASTM D638 35 %
Flexural Strength 23℃ ASTM D790 65 MPa
Flexural Modulus 23℃ ASTM D790 1820 MPa
Izod Notch Impact 23℃ ASTM D256 46 J/m
Optical performance Standard Value Unit
Transmittance ASTM D1003 90 %
Haze 3200μm ASTM D1003 2.0 %
Refractive Index ASTM D542 1.49
Thermal Standard Value Unit
HDT Annealed 1.8MPa ASTM D648 87
Vicat Softening Temperature ASTM D1525 105
CLE Flow ASTM D696 1E-4 cm/cm/℃
Flammability Standard Value Unit
Flame Rating 1.6mm UL94 HB

Application

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl MethacrylateElectronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl MethacrylateMechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter​

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate


Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.
Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.
We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.
our Product Range Includes Engineering Materials And General Mater
Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate

Warehouse:

Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate
Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate Arkema DR101 PMMA Raw Material Impact Resistance Polymethyl Methacrylate
FAQ
How about our package?
1.All the packing can be customized.
2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.
3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to
handle the dosage.
What are our business principles?
1.For the trial order, 1tons will be acceptable.
2.We will do our best for the customer as long as you choosing us.
3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.
What are the advantages of our shipping and delivery?
1.We make sure all the products will be inspected strictly before loading.
2.We will make the shipment within 7 days after confirm the payment.
3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application Electronics electrical appliances mobile phones cars
Grade Injection Grade,Extrusion Grade
OEM/ODM Accepted
