L304M35 Liquid Crystal Polymer Resin Low Warping High Flow Lcp Gf 40

Name: L304M35 Liquid Crystal Polymer Resin Low Warping High Flow Lcp Gf 40
Brand: Toray
Price: 3 USD

L304M35 Liquid Crystal Polymer Resin Low Warping High Flow Lcp Gf 40 Manufactures

Brand Name : Toray

Model Number : LCP L304M35

Certification : MSDS

Place of Origin : Japan

MOQ : 25KG

Price : USD3-3.6KG

Payment Terms : T/T

Supply Ability : 500TONS

Delivery Time : 7-15days

Packaging Details : Plastic bag/Paper bag

Product name : LCP L304M35

Material Attribute : 40%Milled Glass Fiber Filler

Flame Rating : V-0

Process : Injection molding

Shrinkage Flow : 0.1%

Tensile Modulus : 11.9GPa

Flexural Strength : 105MPa

Elongation : 5%

Contact Now

Products Description

L304M35 Liquid Crystal Polymer Resin Low Warping High Flow Lcp Gf 40

LCP Japan Toray L304M35 injection grade low warping high flow good liquid crystal polymer

It is widely used in many fields such as automotive, electronics, medical and industrial. For example, in the automotive industry, it can be used to manufacture parts such as intake manifold, sensor, pump body, gear, etc. In the electronics industry can be used to manufacture mobile phone shell, keyboard, camera cable and other products

product feature

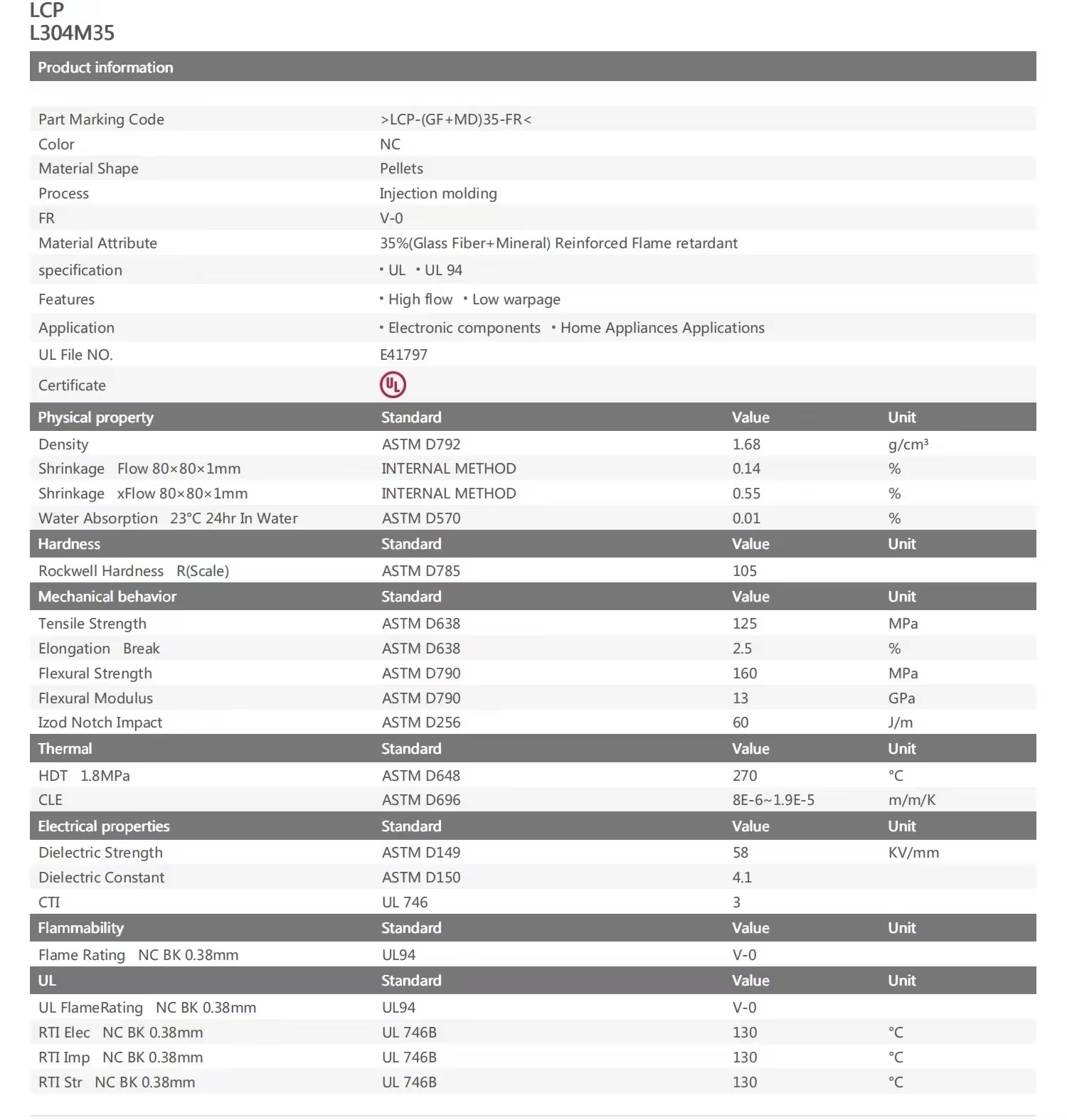

LCP L304M35 Product information Part Marking Code Color Material Shape Process FR	>LCP-(GF+MD)35-FR< NC Pellets Injection molding V-0
Material Attribute specification	35%(Glass Fiber+Mineral)Reinforced Flame retardant ·UL·UL94
Features Application UL File NO	·High flow·Low warpage ·Electronic components·Home Appliances Applications E41797
Certificate
Physical property	Standard	Value	Unit
Density	ASTM D792	1.68	g/cm³
Shrinkage Flow 80×80×1mm	INTERNAL METHOD	0.14	%
Shrinkage xFlow 80×80×1mm	INTERNAL METHOD	0.55	%
Water Absorption 23℃24hr In Water	ASTM D570	0.01	%
Hardness	Standard	Value	Unit
Rockwell Hardness R(Scale)	ASTM D785	105
Mechanical behavior	Standard	Value	Unit
Tensile Strength	ASTM D638	125	MPa
Elongation Break	ASTM D638	2.5	%
Flexural Strength	ASTM D790	160	MPa
Flexural Modulus	ASTM D790	13	GPa
Izod Notch Impact	ASTM D256	60	J/m
Thermal	Standard	Value	Unit
HDT 1.8MPa	ASTM D648	270	℃
CLE	ASTM D696	8E-6~1.9E-5	m/m/K
Electrical properties	Standard	Value	Unit
Dielectric Strength	ASTM D149	58	KV/mm
Dielectric Constant	ASTM D150	4.1
CTI	UL746	3
Flammability	Standard	Value	Unit
Flame Rating NC BK 0.38mm	UL94	V-0
UL	Standard	Value	Unit
UL FlameRating NC BK 0.38mm	UL94	V-0
RTI Elec NC BK 0.38mm	UL746B	130	℃
RTI Imp NC BK 0.38mm	UL 746B	130	℃
RTI Str NC BK 0.38mm	UL 746B	130	℃

Application

L304M35 Liquid Crystal Polymer Resin Low Warping High Flow Lcp Gf 40

Optical lighting

It used to manufacture large lampshade, protective glass, left and right eyepiece tubes of Optical instrument, etc., and can also be widely used as transparent materials on aircraft.

Electronic appliances

It used in the manufacturing of insulation connectors, coil frames, sockets, insulation sleeves, telephone shells and parts, and battery shells for mining lamps, and so on.

Mechanical equipment

It used for manufacturing various gears, racks, worm gears, worms, bearings, cams, bolts, levers, crankshafts, ratchets, and can also be used as mechanical components such as shields

Physical Property Parameter

Company Profile:

Dongguan Pengchen plastic Co., LTD Was Established On November 15, 2022, Located Indongguan City.

The Company Covers An Area Of More Than 400 Square Meters, And The Three warehouses Cover A Total Area Of 110000 Square Meters, With 50-60 Employees.

Our Company Is An Expert In The Field Of Plastic Raw Materials. A Professional Supplier Of modified Engineering Plastics Raw Materials. Engaged In R&d, Production And Sales Of engineering Plastics.

We Provide High-quality Plastic Raw Materials With Low Order quantity, Reasonable Price And Fast Delivery.

our Product Range Includes Engineering Materials And General Mater

Warehouse:

FAQ

How about our package?

1.All the packing can be customized.

2.Plastic bags for inner packing, good quality moisture-proof bags for outer packing.

3.We generally make 25kgs per small bag by accurate weight, this will be very convenient for the customer using. It’s very easy to

handle the dosage.

What are our business principles?

1.For the trial order, 1tons will be acceptable.

2.We will do our best for the customer as long as you choosing us.

3.We promise to solve all the problems during trading process, our quality and the products will be approved by your side.

What are the advantages of our shipping and delivery?

1.We make sure all the products will be inspected strictly before loading.

2.We will make the shipment within 7 days after confirm the payment.

3.We will recommend the best suitable shipping company for our customer from different countries. Saving cost for our client

Application	Electronics electrical appliances mobile phones cars
Grade	Injection Grade,Extrusion Grade
OEM/ODM	Accepted
